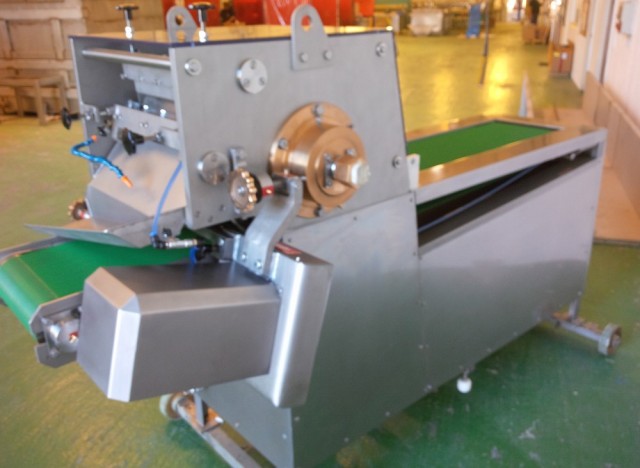

SeafoodTECH FD300 Skinning Machine

Description

Quality Rating - ★ ★ ★ ★ ★

The new FD 300 skinning machine has been designed to skin different kind of fish fillets with high precision and
at the same time maintaining good fillet apearance and a high yield

This is attained due to its effective operational system based on the principle of freezing the skin to a refrigerated drum to mainain a good hold on the skin before cutting with a rotating band knife.

Examples of species we are able to skin are:

Haddock, Whiting, Coley, Cod, Mackerel, Sardines, Herring, Salmon and Trout
The machine is manufactured to a very high standard in AISI-316 stainless steel and non-toxic and
corrosion-resistant materials.

The robust design characteristics and simple operation enable the machine to operate effectively on land based fctories and on processing vessels.

The operating principle is that fillets are presented to the freezing drum with the skin facing upwards on the convyor bands.


The frozen drum rotates the wet skin of the fish sticks to the drum allowing it to be effective transported to the rotating band knife to cut the skin very close to the drum for maximum yield.

The band knife can be adjusted a set distance from the drum to allow for both shallow and deep skinning at a pre determined thickness.




Back to Listings

Specification

Year of Manufacture: 2014

Condition: As New

Demo Machine

Machine Type: SeafoodTech FDS 300 Skinning Machine
Year: As New
Application: Variable Skinning of Various Fish Types
Operator Requirements: 1 person
Size Range: from small sardine fillets to large salmon and almost everything in between
Throughput Rate: 100 - 200 fish per minute depending on size
Approiximate Yield: Please contact us for more information
Dimensions: 2.4 x 1.1 x 1.5 m approx

Our Used Machinery Star Rating To Make It Clearer What You Are Buying

★ Partly usable machine. Needs some mechanical repair / renovation and eventually overhaul

★ ★   Good usable machine, appearance may not be perfect.

★ ★ ★  Fully operational machine without any known defects.

★ ★ ★ ★  Mechanically checked and where necessary defective parts are repaired or replaced, offered in very good condition with 1 month warranty.

★ ★ ★ ★ ★  Totally overhauled with new and reconditioned parts with a 3 month warranty.
