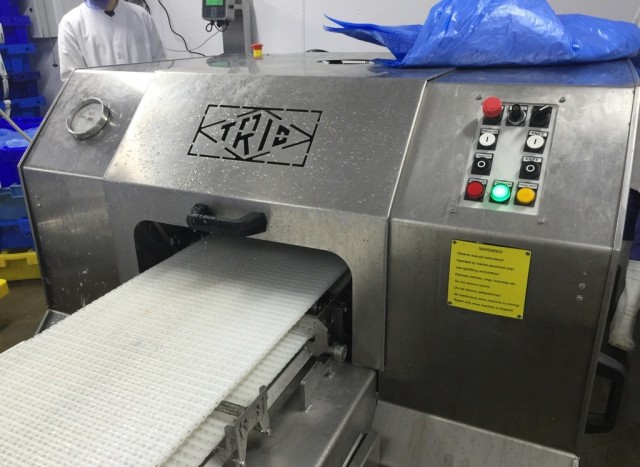

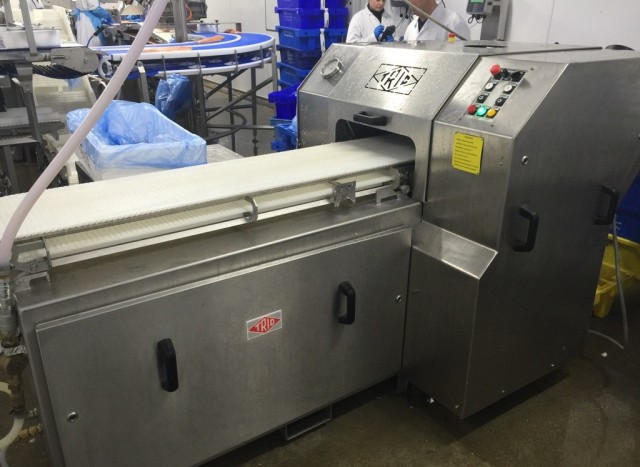

Trio FDS 3000 Skinning Machine

Description

Quality Rating - ★ ★ ★

Trio FDS skinning machines have generally been recognised as the best skinning
machines for soft fillets and previous frozen fillets. Many thousand machines are in use
skinning hake, merluza, hoki, pollack and previously frozen fish fillets.
On the new FDS 3000 skinning machine, the fillets are fed with skin side down, on top
of the drum. The skin, even on fillets with uneven thickness, are flattened against the
cold drum by gravity and mechanical pressure. The skinning result is better than other
Trio FDS skinning machines in terms of less skin spots and higher yield.



Back to Listings

Specification

Year of Manufacture: 2012

Condition: Excellent

Function of the machine

The fillets or portions are placed on the conveyor with skin side down. The fillets are
transferred on to a rotating refrigerated drum where the skin of the fillet “freezes” to the
drum. The freezing is very superficial and not deeper than 1/10mm.
A rotating band knife cuts the fillet from the skin and the skin is scraped off the drum.
The band knife separates the skin from the fillet in a very gentle manner. No strain is
put on either the skin or the flesh. The thickness of the cut or the depth of the skinning,
is infinitely adjustable between 0 - 10 mm.
The machine has an integrated cooling system.
The FDS 3000 is designed on a substantial steel
frame made from 18/8 stainless steel.
All parts that come into contact with the fish fillet are made from stainless steel or plastic.


OPERATORS: 1 - 2 PERSONS
CAPACITY" UP TO 150 COD FILLETS A MINUTE
CONVEYOR WIDTH: 460 MM
REFRIGERANT: R-507
WATER CONSUMPTION: 25 L/MIN
ELECTRICAL POWER: 8,5 kW
WEIGHT: 980 KG

Our Used Machinery Star Rating To Make It Clearer What You Are Buying.

★ Partly usable machine. Needs some mechanical repair / renovation and eventually overhaul

★ ★   Good usable machine, appearance may not be perfect.

★ ★ ★  Fully operational machine without any known defects.

★ ★ ★ ★  Mechanically checked and where necessary defective parts are repaired or replaced, offered in very good condition with 1 month warranty.

★ ★ ★ ★ ★  Totally overhauled with new and reconditioned parts with a 3 month warranty.
