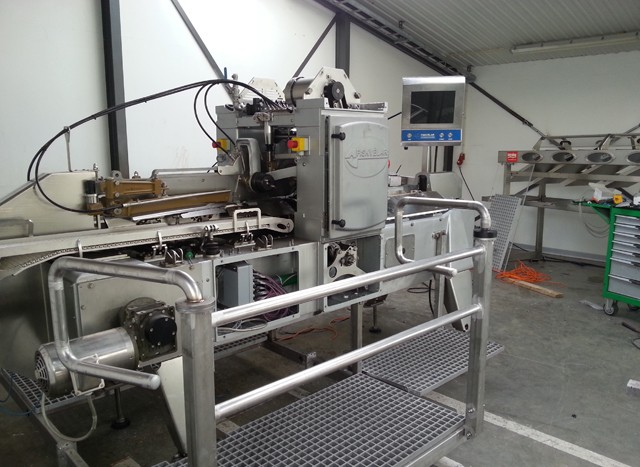

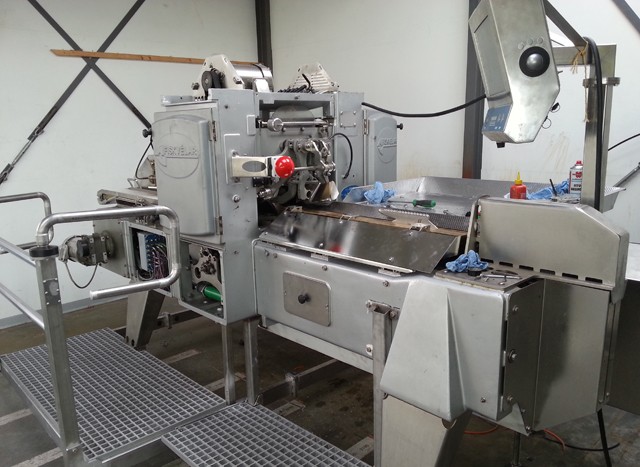

F 189 PLC Filleting Machine

Description

Quality Rating - ★ ★ ★ ★

We have a machine available from stock which was built in 2007 and will be fully overhauled prior to delivery. The machine will be upgraded with newly improved parts. We can support you with installation, training and service from our base in Scotland

F-189-PLC is a computer controlled filleting machine that is built on a solid foundation of the highly respected and
trusted Baader 189 filleting machine. The objective is to produce a filleting machine that will ensure higher yield,
increased throughput with less deterioration of quality than that of the original machine. This is done by redesigning
tools and guides thus introducing and inserting specially designed computer controlled motors to move the tools according to each species as well as fish size.
Maintenance is getting easier than before since mechanically controlled points are much fewer than before, now the
main work required from the maintenance crew is to sharpen the knives, ensure proper lubrication and alignment of
all guides.

The major inventions and modifications
1. New saddles with thinner main plate and increased holding capacity.
2. All brass and copper has been removed from areas touching the raw material.
3. Redesigned infeed tables.
4. Redesigned tail guides with increased moving capacity – fewer fail cuts.
5. Guides have improved and reinvented surface with less resistance.
6. New boneguides, increased size range, better appearance and less gaping.
7. New saddle supports, better stability.
8. New drive mechanism, less risk of failure and downtime.
9. New safety wrench used while changing knives, increasing safety.
10. Less risk of filleting faults than previously – increased trimming throughput.

Back to Listings

Specification

Year of Manufacture: 2007

Condition: Very Good

General Information

Item: . . . . . . . . . . . . . . . . . . . Computer controlled filleting machine
Throughput: . . . . . . . . . . . . . .18-32 fishes/min.
Speed of fillet conveyor: . . . . .12-35 m/s (Left side)
Speed of fillet conveyor: . . . . . 15-45 m/s (Right side)
Knife speed: . . . . . . . . . . . . . 1000-1100 RPM
DISPLACEMENT:
Length: . . . . . . . . . . . . . . . . .3,5 m
Width: . . . . . . . . . . . . . . . . . .1,6 m
Height: . . . . . . . . . . . . . . . . .2,04-2,14m (adjustable)
Weight: . . . . . . . . . . . . . . . . . 1.230 kg
ELECTRICAL SYSTEM (STANDARD):
Current: . . . . . . . . . . . . . . . . .3AC 380-440 + N + PE
Energy: . . . . . . . . . . . . . . . . . 7hp/5kW
Circuit Breaker: . . . . . . . . . . . 3ph C16A
WATER CONSUMPTION:
Normal Flow: . . . . . . . . . . . . .800-1600 liters/hour

Two versions – For big fish or small fish
The machine can be delivered in two versions, for big
fish or small fish, this ensures that each customer is
able to choose either the version for smaller or bigger
which suits better, some companies even have both
machines set up at their facilities.
Both versions can do the same species and in the table
below you can see the recommended size range:


MACHINE FOR SMALLER FISH:
1. Haddock . . . . . . . . . . . . . . . . (0,7 - 2,8 kg)
2. Cod . . . . . . . . . . . . . . . . . . . (0,7 - 3,0 kg)
3. Pacific Cod . . . . . . . . . . . . . . (0,7 - 2,5 kg)
4. Saithe . . . . . . . . . . . . . . . . . (0,7 - 2,8 kg)
5. Tusk . . . . . . . . . . . . . . . . . . . (0,7 - 2,8 kg)
6. Ling . . . . . . . . . . . . . . . . . . . (0,7 - 2,8 kg)
7. Sea Wolf . . . . . . . . . . . . . . . . (1,0 - 2,5 kg)


MACHINE FOR BIGGER FISH:
1. Haddock . . . . . . . . . . . . . . . . (2,0 - 4,0 kg)
2. Cod . . . . . . . . . . . . . . . . . . . (2,0 - 5,5 kg)
3. Pacific Cod . . . . . . . . . . . . . . (2,0 - 4,0 kg)
4. Saithe . . . . . . . . . . . . . . . . . (2,0 - 4,5 kg)
5. Tusk . . . . . . . . . . . . . . . . . . . (2,0 - 4,0 kg)
6. Ling . . . . . . . . . . . . . . . . . . . (2,0 - 4,0 kg)
7. Sea Wolf . . . . . . . . . . . . . . . . (2,0 - 5,5 kg)

Our Used Machinery Star Rating Makes It Easier to Understand What You Are Buying

★ Partly usable machine. Needs some mechanical repair / renovation and eventually overhaul

★ ★   Good usable machine, appearance may not be perfect.

★ ★ ★  Fully operational machine without any known defects.

★ ★ ★ ★  Mechanically checked and where necessary defective parts are repaired or replaced, offered in very good condition with 1 month warranty.

★ ★ ★ ★ ★  Totally overhauled with new and reconditioned parts with a 3 month warranty.
