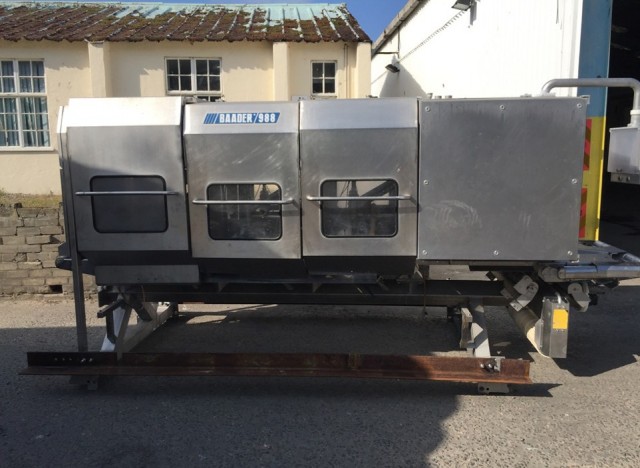

Baader 988 Automatic Trimming Machine
We have a good condition Baader 988 Trimming Machine available for sale. Complete witth vacuum pump + cyclone and spare parts.
The BAADER 988 is an advanced unique trimming machine for salmon and sea trout. It reduces the need for manual trimming drastically and combines a consistently high level of cutting quality of the end product with an advanced yield saving process.
It evaluates each fillet according to size, volume, colour grade and trim category. The BAADER 988 calculates the cutting patterns based on the evaluated parameters. The grade signal evaluated for each fillet can be used for sorting the fillets into different processes later on. Each fillet is cut or not cut according to this grade evaluation.
The BAADER 988 allows processors to “design” all kinds of trims along the belly side, the back side and the surface of the fillets. BAADER 988 can maximise your production value, yield, throughput and quality.
High Speed - up to 50 fillets / min (depending on fillet size)
Surface trim also in the back area possible - thickness can be adjusted quick and easy
Cutting on demand - individual cutting of each fillet according to user defined settings
Trim parameters can be stored in a recipe archive
Cutting statistics of the last 100 fillets
Different belly and back cutting features
Miss-orientated fillets will not be cut - cutting tools stop automatically
Year of Manufacture: 2011Condition: Excellent
Fish species: Salmon and Trout
Working range: fillet length: from 360 - 750 mm
fillet width: max. 250 mm
Throughput: up to 50 fillets/min (25 fillets/min each lane)
